Fabric Banner Blockout (PID: 20685)

Fabric Banner Blockout
<< >>
Fabric Banner Blockout

Our blockout fabric is 3-ply and 100% polyester. The middle layer is used to significantly enhance the brilliance and vividness of the colors and to ensure that no back lighting will spoil your image. Perfect for applications to stop flash and glare such as for photo backdrops.

SIZE

Height: 12 inch to 96 inch (1 inch increment)
Width: 12 inch to 150 feet (1 inch increment)

MATERIAL

9.5 oz. Block Out Fabric (polyester). This is perfect fabric for designing signage, panels, screens and backdrops. The fabric makes it perfect for wrapping around frames and is commonly used for Dye-Sublimation as well.

POLE POCKET OPTION

Pole pockets are used on some specific banner installations. The purpose of the pocket is to slide the banner over a pole. The bottom pocket is used to weigh down and add some tension to the banner. That way the creases can be reduced and a solid tensioned appearance can be achieved.

Pole pockets come with 2 inches, 3 inches of material wrapped around the top, the bottom of the banner. The material of the vinyl banner gets folded on the back of the banner like hems. But it creates a pocket through which you can insert a pole.

How to set artwork for a banner with pole pockets?

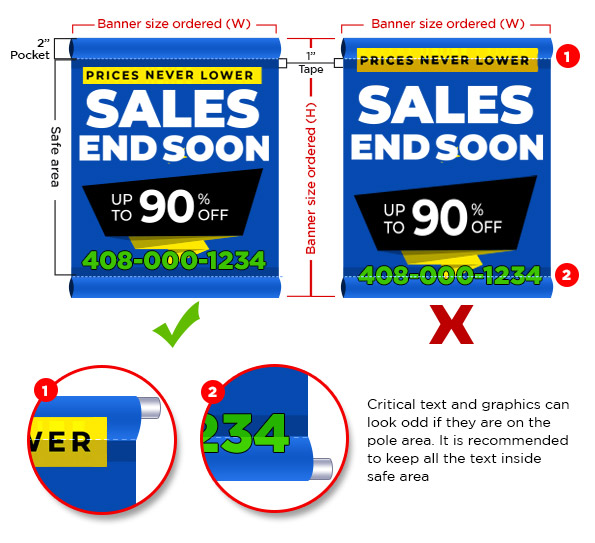

The diagram below shows pole pocket allowance for a banner with 2" pockets top and bottom.

A 3" clear area is needed at the top and the bottom of the artwork. This allows 2" for the pocket and 1" for the tape. No critical text, logos, and graphics should enter this area. Background color and images are fine to enter the pocket area.



What size should your pole pocket be?

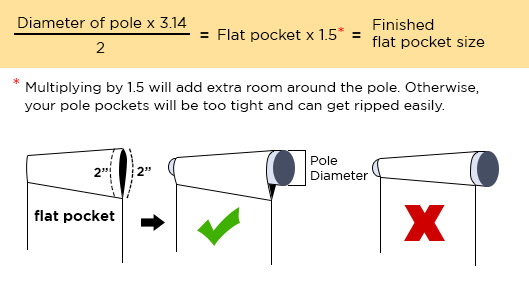

The size of these pockets will depend on the diameter of the pole being used to insert. We have shown an easy way to calculate your flat pocket size:



Pole Pocket Flat Measure Diameter of Pole
2" 1/2"
3" 1.25"


Ordering your banner

When entering your banner size and choosing the pole pocket option, please ensure your banner height is the total height including the pockets.

Creating banner artwork with pole pockets

When creating your artwork please leave the clear area where your pocket will be placed. Please make sure that no critical text, logos, or important information is within the pocket area.

DESIGN SERVICE

Print Ready PDF, OR Simple Text Setup, OR Full Color Design. You Choose! We do it.

GROMMETS & FINISHING

Our default option is to apply grommets every 2 feet and trim to edge. We also offer the option of Re-enforcing the edges of the banner for a clean and sturdy finish.

PRODUCTION TIME

Standard Turnaround is 5 Days.

OUR GUARANTEE

Check out our No Hassle 100% Satisfaction Guarantee Policy


Instant Calculator

Select Product

1. Select Size

2. Printed Sides/Color  Help

1 Side Only (4/0)

3. Material  Help

9.5oz Block Out Fabric (polyester)
4. Banner Finishing Options
+
Edge reinforcement, Grommets and Rope inserts.

a. Edge Reinforcement  Help

b. Grommets  Help

c. Pole Pockets Options  Help

5. Artwork  Help

6. Proofing  Help

7. Turnaround Time (View Calendar)

5 Business Days

Size (Width x Height):

Job Name:

Estimated Completion Date:

Estimate Shipping Cost and Delivery Date
Price as Configured:
Shipping:(In-Store Pickup)
Sub Total:
Unit Price:
QUANTITY: Add to cart and continue Add to cart and continue
Prefer to order by phone

Prefer to order by phone

Call 408-567-9553| 8:30a.m to 5:30p.m (PT)


Share Product Configuration

Generate a link with the current product configuration you have on the screen?

DETAILS

Our blockout fabric is 3-ply and 100% polyester. The middle layer is used to significantly enhance the brilliance and vividness of the colors and to ensure that no back lighting will spoil your image. Perfect for applications to stop flash and glare such as for photo backdrops.

SIZE

Height: 12 inch to 96 inch (1 inch increment)
Width: 12 inch to 150 feet (1 inch increment)

MATERIAL

9.5 oz. Block Out Fabric (polyester). This is perfect fabric for designing signage, panels, screens and backdrops. The fabric makes it perfect for wrapping around frames and is commonly used for Dye-Sublimation as well.

POLE POCKET OPTION

Pole pockets are used on some specific banner installations. The purpose of the pocket is to slide the banner over a pole. The bottom pocket is used to weigh down and add some tension to the banner. That way the creases can be reduced and a solid tensioned appearance can be achieved.

Pole pockets come with 2 inches, 3 inches of material wrapped around the top, the bottom of the banner. The material of the vinyl banner gets folded on the back of the banner like hems. But it creates a pocket through which you can insert a pole.

How to set artwork for a banner with pole pockets?

The diagram below shows pole pocket allowance for a banner with 2" pockets top and bottom.

A 3" clear area is needed at the top and the bottom of the artwork. This allows 2" for the pocket and 1" for the tape. No critical text, logos, and graphics should enter this area. Background color and images are fine to enter the pocket area.



What size should your pole pocket be?

The size of these pockets will depend on the diameter of the pole being used to insert. We have shown an easy way to calculate your flat pocket size:



Pole Pocket Flat Measure Diameter of Pole
2" 1/2"
3" 1.25"


Ordering your banner

When entering your banner size and choosing the pole pocket option, please ensure your banner height is the total height including the pockets.

Creating banner artwork with pole pockets

When creating your artwork please leave the clear area where your pocket will be placed. Please make sure that no critical text, logos, or important information is within the pocket area.

DESIGN SERVICE

Print Ready PDF, OR Simple Text Setup, OR Full Color Design. You Choose! We do it.

GROMMETS & FINISHING

Our default option is to apply grommets every 2 feet and trim to edge. We also offer the option of Re-enforcing the edges of the banner for a clean and sturdy finish.

PRODUCTION TIME

Standard Turnaround is 5 Days.

OUR GUARANTEE

Check out our No Hassle 100% Satisfaction Guarantee Policy
